Center Panel Profiles

It is an option to specify nearly any center panel into most of our mitered profiles or stile and rail profiles. If there is an engineering or design conflict we will advise you before manufacture. Beside each center panel profile we have listed standard door designs that use that panel. Click on the door name to visit some of our recommended door designs.

Solid Wood Raised Panels

cross section of Center Panel A

see Chesswood

cross section of Center Panel B

Best Seller - see Brisbane, Hansel, Hensley, Tasker

cross section of Center Panel C

Best Seller - see Evan, Radison, Riddall

cross section of Center Panel HF
cross section of Center Panel I

see Schubert

cross section of Center Panel J

see Fentiman

cross section of Center Panel K

see Colton

cross section of Center Panel L

see Leeside

cross section of Center Panel M
cross section of Center Panel N

Not Available in MDF

cross section of Center Panel NN

see Bessemer

cross section of Center Panel O
cross section of Center Panel P

see Harwood

cross section of Center Panel S

see Eldon

cross section of Center Panel S2

see Riverdale

cross section of Center Panel T

Center Panels - For Applied Mouldings

These center panels are designed with extra long tongues which provide extra dimension for panel moulding. These deep tongues result in well scaled and ornate door styles that can only be produced with our very large cutting heads. Door designs using these panels are unique, uncommon and result in a door that is clearly top-of-the-line.

cross section of Center Panel AX

not available in MDF

cross section of Center Panel BX

not available in MDF

cross section of Center Panel CX

not available in MDF

cross section of Center Panel FX

not available in MDF

cross section of Center Panel R59

not available in MDF

Center Panels - Grooved

Grooved center panels are 3/8" thick (9.5mm) and are available in solid wood or MDF for painted doors. The grooves are 2" on center as standard but they can be custom spaced if required. Grooved drawers require vertical grain direction so that the grooves are aligned with the grain of the wood. Each center panel is layed out by hand so grooves are always centered between the stiles. This ensures that stacked doors of the same width, or a drawer above a door of the same width will always have the grooves aligned.

cross section of Center Panel F3

see Mission

cross section of Center Panel F4
cross section of Center Panel F&

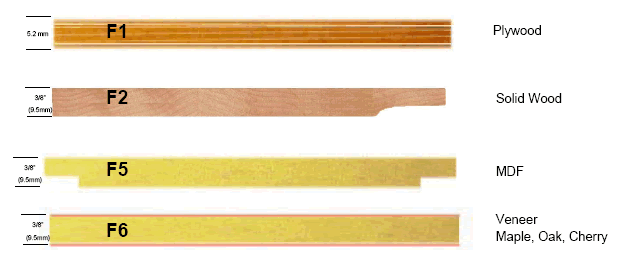

Center Panels - Flat

F1 flat veneer panel

F1 is a 5.2mm thick veneered panel

F2 solid wood flat panel

F2 is a 9.5mm thick solid wood panel

F5 MDF 9.5mm thick MDF panel

F5 is a 9.5mm thick MDF panel
